Jump to navigation Jump to go looking A split-50 M-type 66 block with bridging clips hooked up

A 66 block is a kind of punchdown block used to connect sets of wires in a telephone device. They had been manufactured in three sizes, A, B, and M. A and B have six clips in each row whilst M has handiest 4. The A blocks have the rows spaced farther aside and feature been out of date for many years. The B taste is used basically in distribution panels where a number of destinations (frequently 1A2 key telephones) wish to connect with the same source. The M blocks are ceaselessly used to connect a single instrument to this type of distribution block. 66 blocks are designed to terminate 22 via 26 AWG solid copper cord. The 66 series connecting block, introduced within the Bell System in 1962, used to be the primary terminating device with insulation displacement connector generation. The term 66 block displays its Western Electric model number.

The 25-pair standard non-split 66 block incorporates 50 rows; each and every row has four (M) or six (B) columns of clips which can be electrically bonded. The 25-pair split 50 66 block is the business usual for simple termination of voice cabling, and is a typical community termination by telephone companies—most often on commercial houses. Each row comprises 4 (M) or six (B) clips, however the left-side clips are electrically remoted from the right-side clips. Smaller variations also exist with fewer rows for smaller-scale use, similar to residential.

66 blocks are to be had pre-assembled with an RJ-21 feminine connector that accepts a snappy connection to a 25-pair cable with a male end. These connections are generally made between the block and the customer premises apparatus (CPE).

Use

66 block B sequence with 6 clips in every row. Jumper wires at the left attach the highest pair with the ground pair, permitting to split as much as 10 devices.

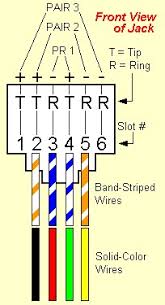

Circuit pairs are attached to the block with a punch-down instrument by terminating the top twine at the leftmost slot of one row and ring cord on the leftmost slot of the row beneath the mating tip twine. Typically, a 25-pair cable coming from the phone corporate is punched down at the left aspect of a split-type block in pairs. The appropriate hand side of the block is stressed out to the customer premises equipment with jumper wires. Bridging clips are used to glue the 2 middle terminals, connecting the left-hand aspect of a break up block with its right-hand aspect, thus finishing the circuit. The clips shape the purpose of interface between the subscriber and the provider. The bridging clips can also be simply removed via either the subscriber or phone company workforce for trouble isolation, allowing the power to separate a circuit and determine by which course trouble would possibly exist. An orange insulating quilt attached to a 66 block denotes its designation as a demarcation point by the native trade service.

Modern One hundred ten blocks largely supplanted 66 blocks for brand new industrial installations at the finish of the 20 th century, as the capability for a circuit to carry digital data overlaid its ability to carry analog voice conversations. 110 block termination is almost always compliant with Category 5 (or greater) and therefore in a position to supporting 100 MHz (or quicker) signaling. Compared to One hundred ten and higher-density wire terminating blocks, 66 blocks are physically huge; and as a result of their most 16 MHz Category 3 signaling compatibility, they are ill-suited for high velocity (sooner than 10BASE-T) information circuits. However, particular Category 5e Certified 66 blocks are to be had from producers equivalent to Siemon which meet all standards for Cat5e termination.[1]

Split 50 66 blocks are still used as network interface blocks in distribution frames to interconnect circuits with bridging clips, however are primarily limited to narrowband circuits corresponding to POTS/DSL, DS0, or DS1 circuits.
